Features

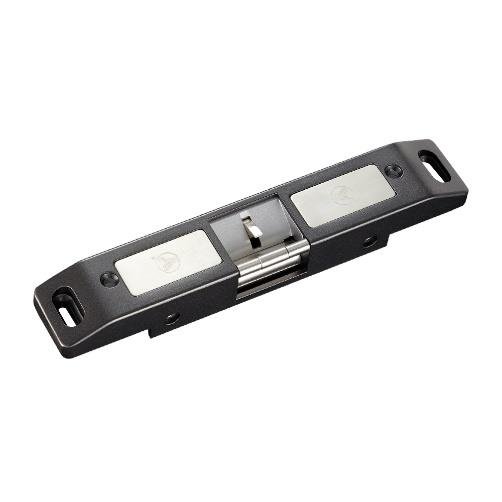

Elock-S621S is suitable for fire exit door with Push-rod lock.The operating principle of electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the door.
Specification
| Product Parameter | Parameter Description |
| Lock Size
lock tongue structure |
230Lx40Wx30H(mm)
304 Stainless Steel |
| Holding Force | 2200 lbs |
| Voltage | DC12V or DC24V |
| Current | 12V/220mA or 24V/110mA |
| Signal Output | Lock Status Output NO/NC/COM |
| special design | applies to all brands of fire push rod lock |
| Suitable For | supporting rod lock fire door |
| Surface Temperature | Within +20℃ |
| Suitable Temperature | -10~+55℃(14-131F) |
| Operating Humidity | 0～90%(non-condensing) |
| Face plate Housing | High temperature paint |
| Lock tongue
The door open |
Surface by coating nickel
90 degrees |
| Weight | 0.75kg |
