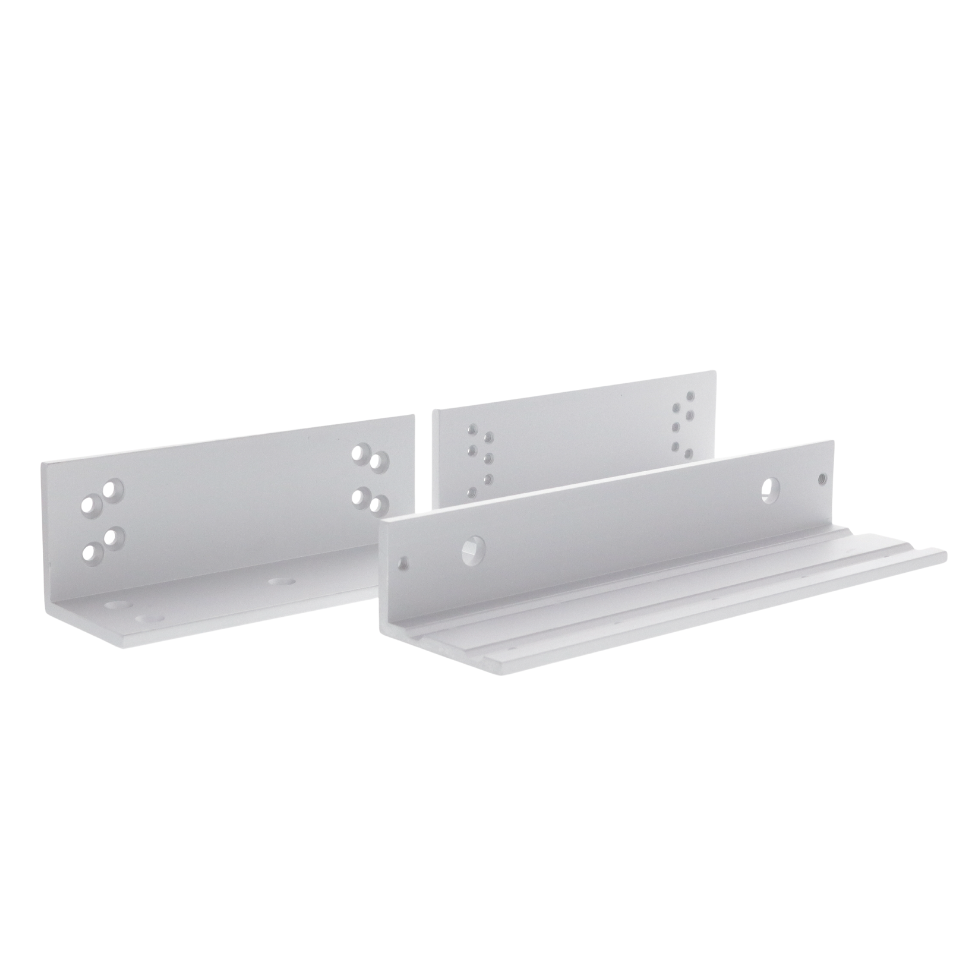

ZL Bracket (EL-BK-Z800S)

The ZL Bracket series is designed to provide comprehensive mounting support for electromagnetic locks, specifically facilitating installation on inward-opening doors. These brackets are categorized by size to ensure compatibility with specific Elock series models.

• General Application: Used in conjunction with Elock series electromagnetic locks to allow for secure mounting on various door configurations.

• Model EL-BK-Z300:

  • Dimensions: 170mm (L) x 25mm (W) x 38mm (H).

  • Compatibility: Pairs with the Elock-300 series.

• Model EL-BK-Z600:

  • Dimensions: 250mm (L) x 30mm (W) x 46mm (H).

  • Compatibility: Pairs with the Elock-600 series.

• Model EL-BK-Z800:

  • Dimensions: 185mm (L) x 63mm (W) x 73mm (H).

  • Compatibility: Pairs with the Elock-800 series.

• Model EL-BK-Z1200:

  • Dimensions: 266mm (L) x 46mm (W) x 73mm (H).

  • Compatibility: Pairs with the Elock-1200 series.
